Flex Sensor 2.2" (Sparkfun / Adafruit)

Flex Sensor 2.2" (ของแท้ Sparkfun)

วัดค่าการโค้งงอของวัตถุที่นำไปติดตั้งโดยให้ค่าความต้านทานเปลี่ยนแปลงไปเมื่อมีการโค้ง บิดงอ สินค้านำเข้าจาก USA ของแท้ Sparkfun

Description:

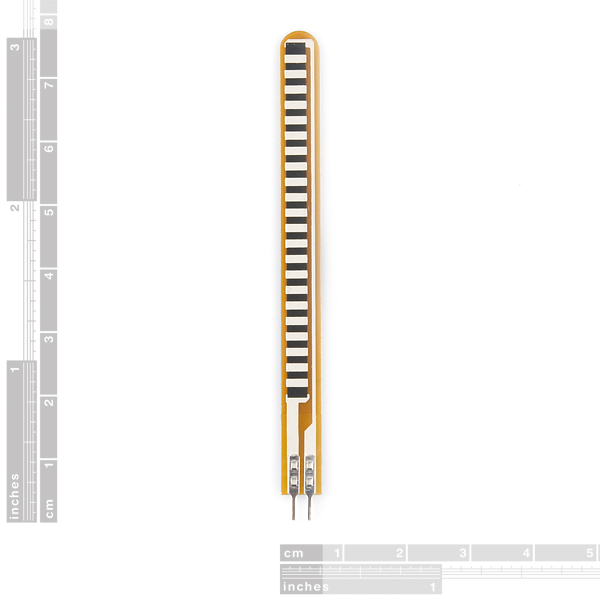

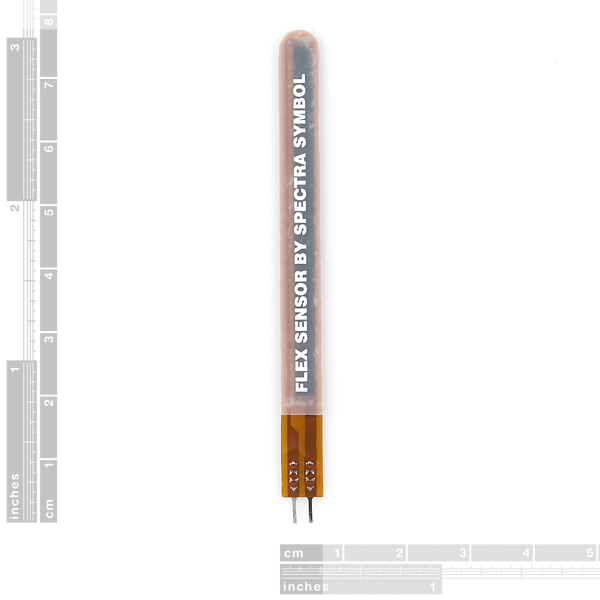

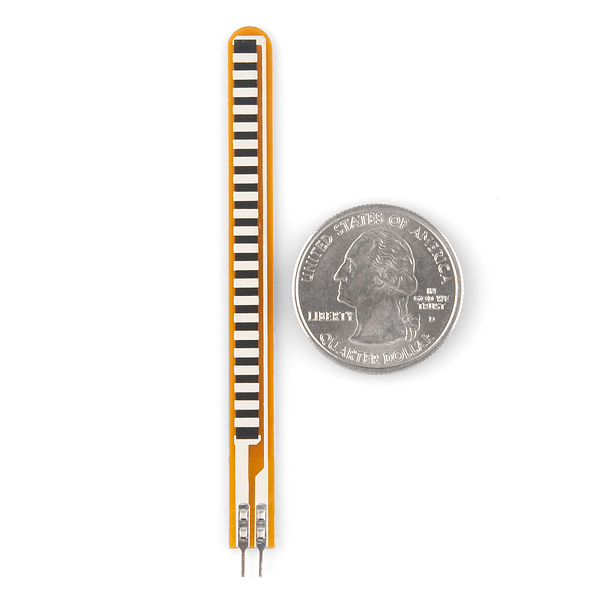

A simple flex sensor 2.2" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the originalNintendo Power Glove.

The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).

Connector is 0.1" spaced and bread board friendly. Check datasheet for full specifications.

Note: Please refrain from flexing or straining this sensor at the base. The usable range of the sensor can be flexed without a problem, but care should be taken to minimize flexing outside of the usable range. For best results, securely mount the base and bottom portion and only allow the actual flex sensor to flex.

Documents:

• Datasheet (FS7954)
• ITP Sensor Workshop
• Quickstart Guide
• Bildr Tutorial
