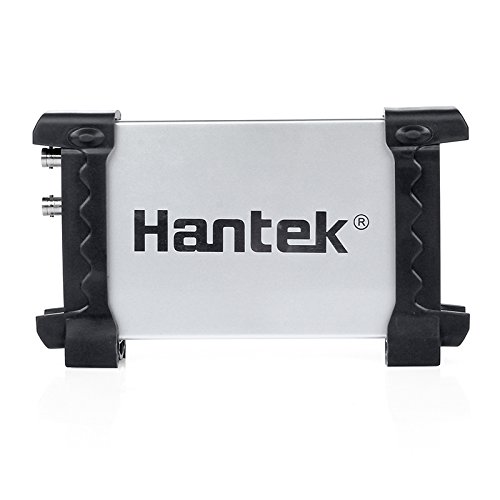

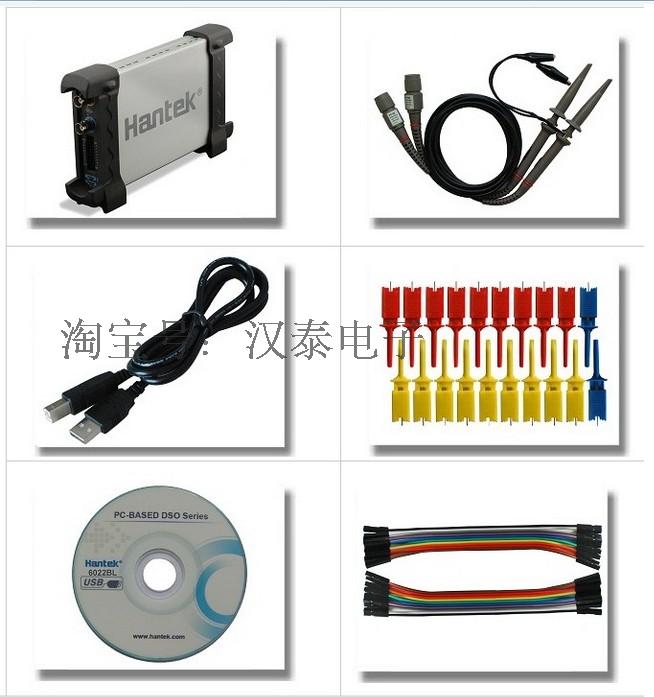

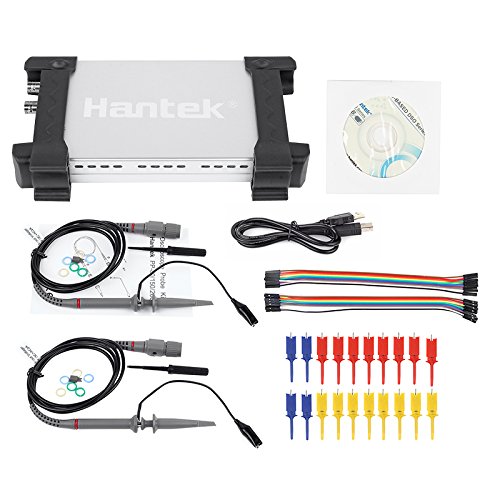

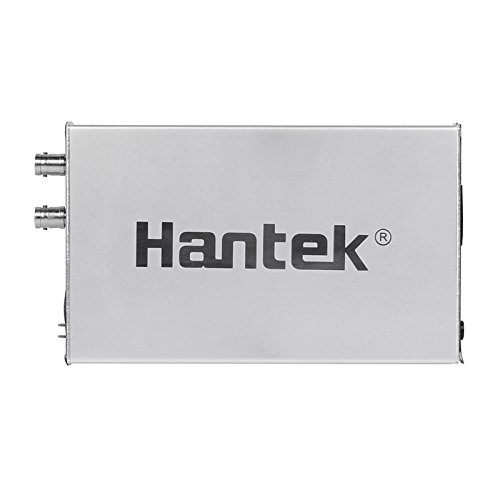

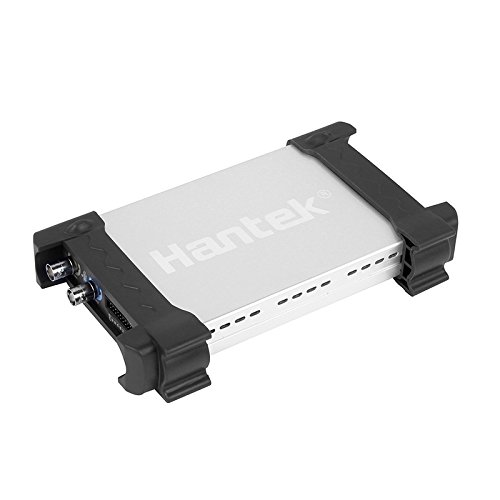

Hantek 6022BL PC Based USB Digital Portable Oscilloscope + 16 CHs Logic Analyzer, 48MS/s Real-time Sampling, 20MHz Bandwidth, FFT

Features

* Operating System: Windows8, Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
* 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
* Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, * division, X-Y plot.
* Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
* One computer can connect many DSO, extend channel easily.
* PID/VID Second Design instance.

Specifications

* Memory Depth: 1M
* Rise Time: 17.5ns
* Time Base Precision: ±50ppm
* Time Base Range: 4ns/div-1h/div (Step by1-2-4)
* Input Impendence: 1MΩ 25pF
* Input Sensitivity: 10mV/div～5V/div
* Vertical Resolution: 8Bit
* Vertical Position Range: 10mV ~ 5V/div @ x1 probe; 100mV ~ 50V/div @ x10 probe; 1V ~ 500V/div @ x100 probe; 10V ~ 5KV/div @ x1000 probe
* DC Accuracy: ±3%
* Bandwidth Limited: 20MHz
* Trigger Type: Edge, Alternative

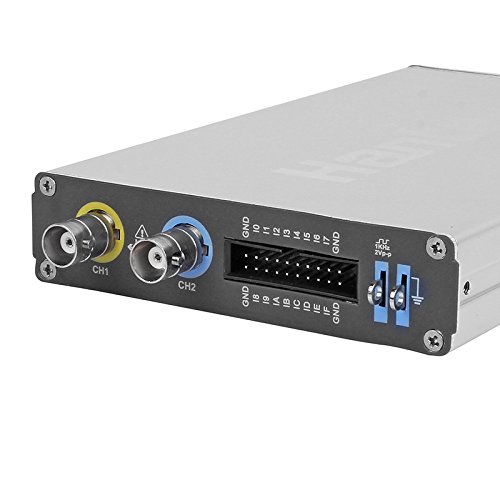

* Trigger Source: CH1, CH2, EXT, EXT/10
* Math : +,-,x,÷,FFT, Invert
* Cursor Measurement: Cross, Trace, Horizontal, Vertical
* Auto Measurement: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

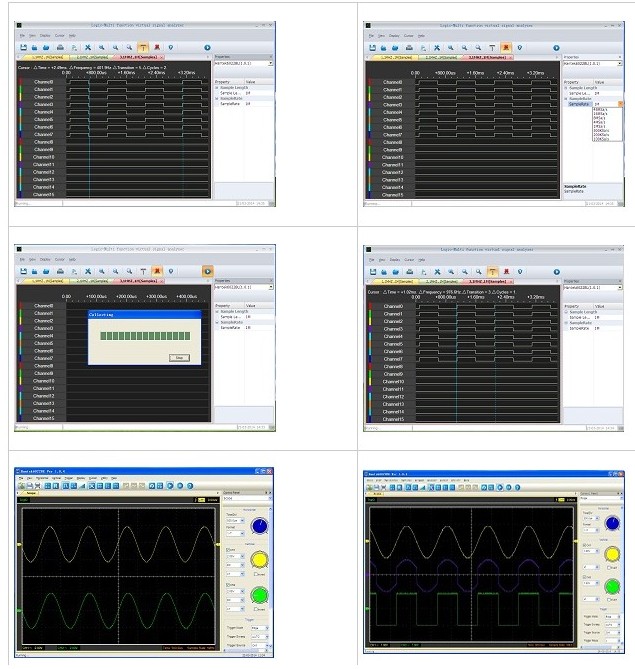

Logic Analyzer

* Max. Impendance: 1MΩ(C=7.5pF)
* Max. Voltage: 0V~5.5V
* Max. Sample: 48M
* Bandwidth: 10MHz
* Compatible Input: TTL, LVTTL, CMOS
* Memory Depth: 1M/CH
