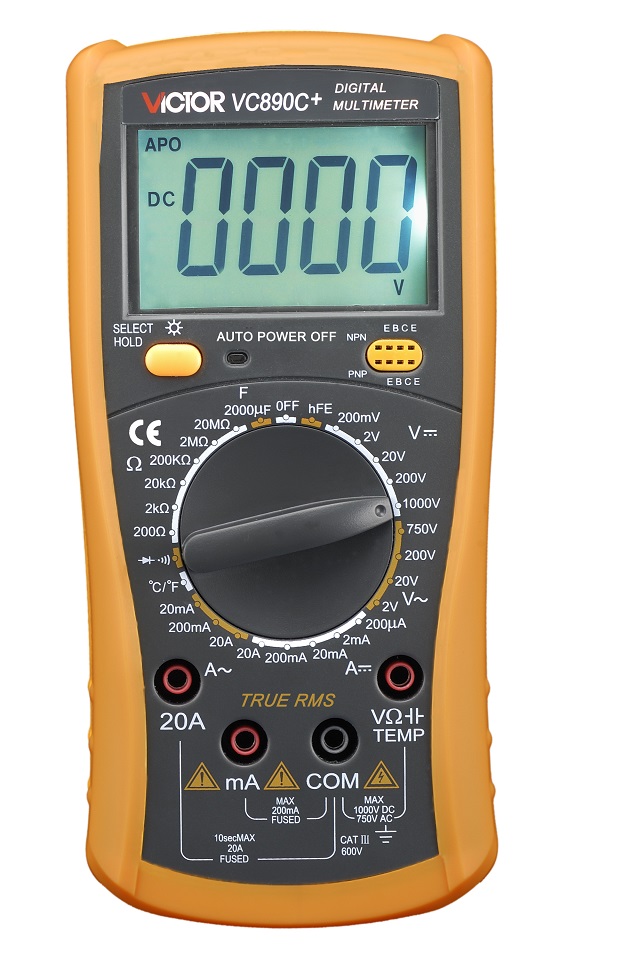

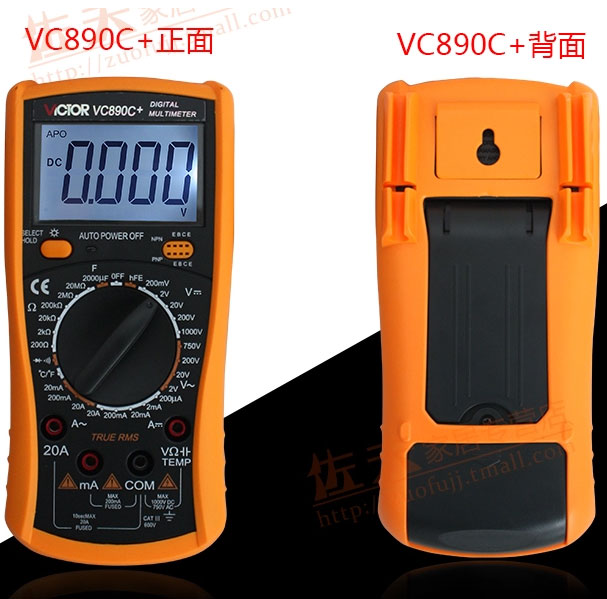

Digital Multimeter True RMS (Victor VC890C+)

Basic Function

Range

Basic accuracy

DC Voltage

200mV/2V/20V/200V/1000V

±(0.5%+3)

AC Voltage

2V/20V/200V/750V

±(0.8%+5)

DC Current

20uA/2mA/200mA/20A

200uA/20mA/200mA/20A

±(0.8%+10)

AC Current

2mA/200mA/20A

20mA/200mA/20A

±(1.0%+15)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

200Ω/2kΩ/20kΩ/200kΩ/20MΩ

±(0.8%+3)

Capacitance

20nF/2uF/200uF

±(2.5%+20)

Celsius

(-20~1000)°C

±(1.0%+5)

Special Function

Diode

C

Transistor

√

Continuity buzzer

√

Low battery indication

√

Data Hold

√

Auto power off

√

Function protection

√

Restorable Fuse protection

√

Shock proof protection

√

Input impedance

10MΩ

Sampling rate

3 times/s

AC Frequency response

40~400Hz

Operation way

Manual range

Max. Display

1999

LCD size

55×43mm

Battery

9V(6V22)

Product color

Case: dark gray; Holster color     yellow

Product Net Weight

Approx:270g

Product Dimension

168×87×47mm

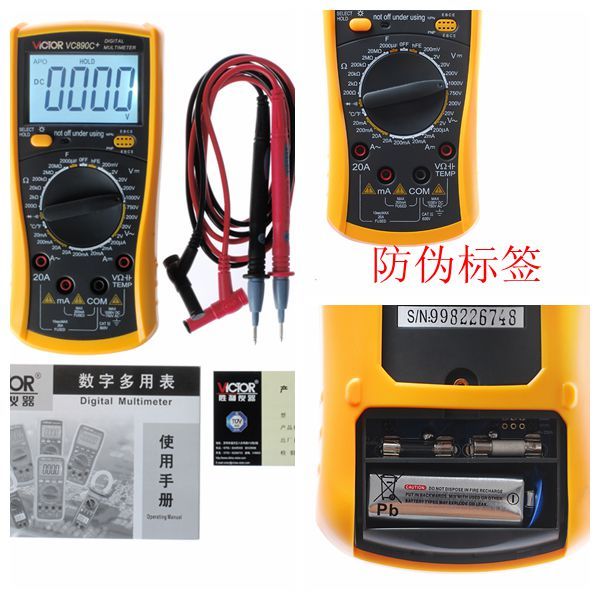

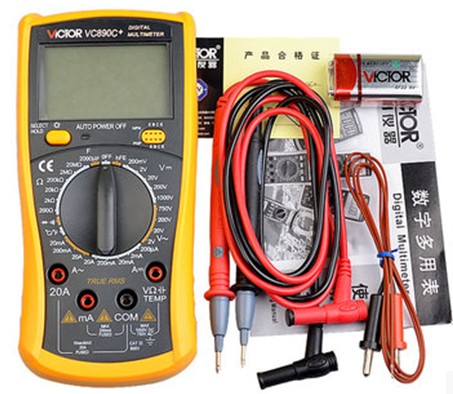

Standard Accessories

Test leads/battery/instruction manual

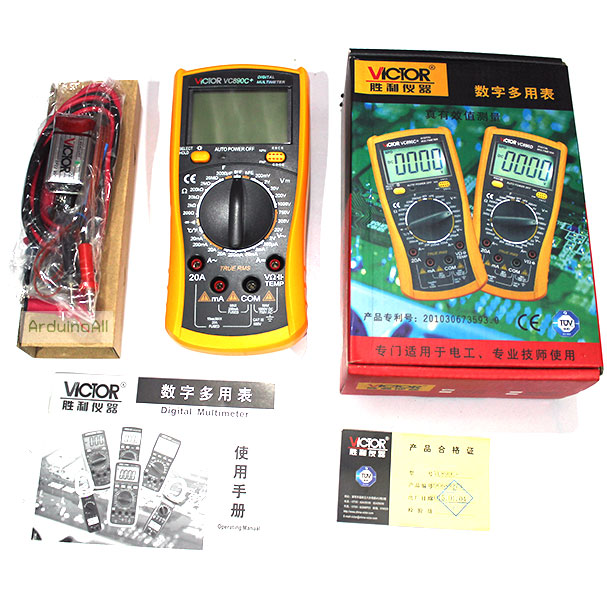

Standard inner packing

Color box

Standard Quantity Per Carton

30 pcs

Carton size

396×312×433mm

Standard Gross Weight

Approx:17.5kg
