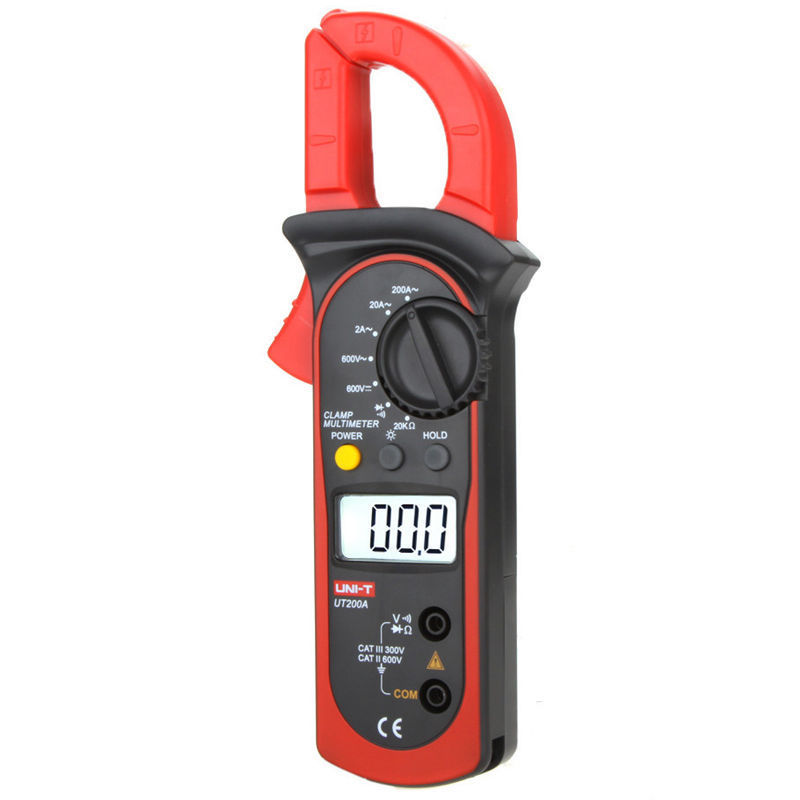

LCD Backlight UNI-T UT200A Current Voltage Resistance Diode Digital Clamp Meter

Description:

U200A is a stable, secure and reliable 3 1/2 Digital Clamp Meter

Made of high quality ABS, durable enough for long term use

High degree of accuracy, LCD display, very easy to read

Can be used to measure AC and DC Voltage, AC Current, Resistance, Diode

Lightweight and portable, suitable for schools, factories, families and amateurs

AC Current : 2A/20A/200A (1.5%+5)

AC Voltage : 600V (1.5%+5)

DC Voltage : 600V (1%+3)

Resistance : 20kΩ (1%+4)

Display Count: 1999

Jaw Capacity: 28mm

Input Impedance for DCV: around 10M

Material: ABS

Display: LCD

Measuring Method: Double Integral A/D converter

Sampling Rate: 2 ~ 3 / sec

Max. Clamp Diameter: 28mm

Max. Wire Diameter: 26mm

Power Supply: 6F22 9V battery(not included)

Operating Temperature: 0~40C/32~104F

Storage Temperature: -10~50C/14~122F

Relative Humidity: 75%(0~30C),50%(30~40C)

LCD Size: 35.6mm * 18mm

Dimensions: 27.5*9*6cm

Weight: 359g

Specifications:

Made of high quality ABS

Durable enough for long term use

High degree of accuracy

Easy to read

Lightweight and portable

Measure AC and DC Voltage, AC Current, Resistance, Diode

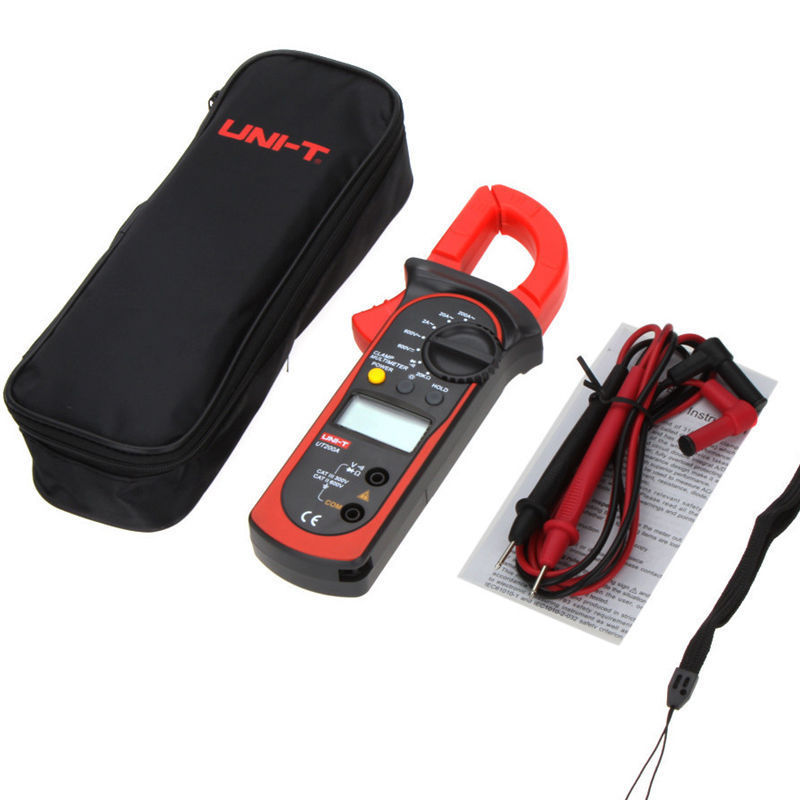

Package Included:

1 x UT200A Multimeter

1 x Test Lead Pen

1 x Bag

1 x Strap
